Many two-way radio users assume that the only way to extend communication range is to purchase more powerful radios or add a repeater system. While these solutions certainly work, they come with significant costs and may be unnecessary.
Numerous strategies can dramatically improve radio range without increasing transmit power, often at little or no expense. Understanding and implementing these techniques allows organizations to maximize their existing equipment’s performance before investing in expensive upgrades.
Optimize Antenna Performance
The antenna is the single most important component affecting radio range, yet it receives less attention than it deserves. Improving antenna performance can double or even triple effective communication distance without changing anything else about your radio system.
Replace damaged or inefficient antennas immediately. Even antennas that appear intact externally may have broken internal elements or compromised connections. A damaged antenna can reduce range by 50% or more. If radios that previously communicated well suddenly struggle to reach each other, suspect antenna problems first. Testing with a known good antenna quickly identifies whether the original antenna has failed.
Upgrade to higher-gain antennas where appropriate. Standard handheld radio antennas typically have zero gain or slightly negative gain. Aftermarket high-gain antennas can provide 3 to 6 dB of additional gain, effectively doubling transmission distance. These antennas are usually longer than standard ones, trading convenience for performance. For users who prioritize range over portability, this trade-off is worthwhile.
For mobile installations, antenna selection and placement dramatically affect performance. A quality gain antenna mounted properly on a vehicle roof can outperform a standard antenna by 50% to 100% in range. Quarter-wave, half-wave, and gain antennas each have different radiation patterns and efficiency levels. Consulting with a qualified radio technician ensures the best antenna choice for your specific application.
Keep antennas vertical whenever possible. Radio antennas are designed to radiate most efficiently when held perpendicular to the ground. Tilting the radio so the antenna angles away from vertical reduces both transmission and reception efficiency. Users should hold radios upright at shoulder level rather than at waist height or horizontal positions.
Maintain antenna connections carefully. Corrosion, dirt, or looseness at the antenna base prevents proper signal transfer. Regularly inspect and clean antenna connectors, especially on radios exposed to harsh environments. A thin coating of dielectric grease on threaded connections prevents corrosion and ensures optimal conductivity.

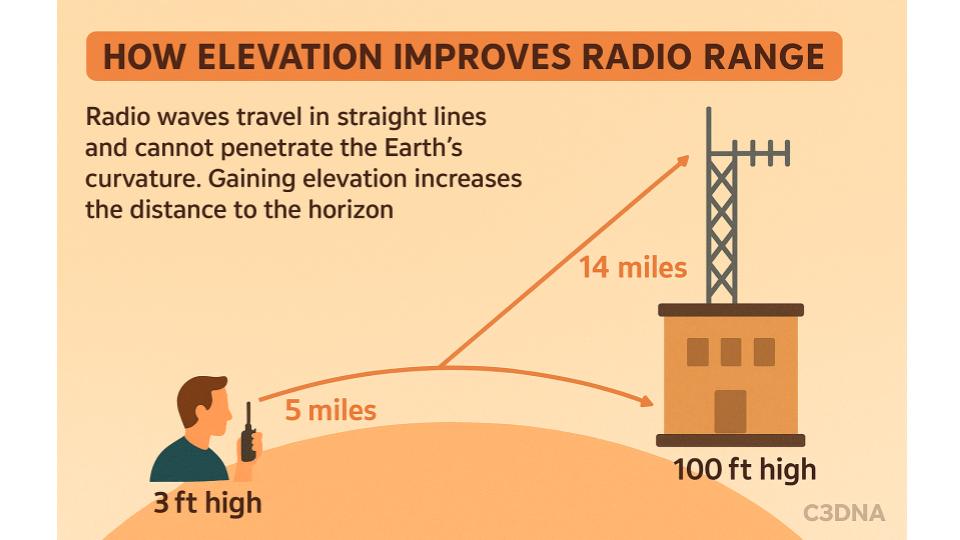

Elevate Your Position
Elevation provides one of the most dramatic improvements to radio range. Radio waves travel in straight lines and cannot penetrate the Earth or bend around its curvature. Gaining even modest elevation extends the distance to the horizon and creates clearer line of sight paths to other radios.
The relationship between antenna height and range follows a predictable formula. An antenna at ground level can “see” to the horizon approximately 1.4 times the square root of its height in feet. A person holding a radio at shoulder height (about 5 feet) can communicate to the horizon roughly 3 miles away. Climbing to a rooftop 100 feet high extends this to about 14 miles.
In practical terms, moving from the first floor to the third floor of a building often doubles usable range. Walking to the top of a small hill can transform marginal communication into clear, strong signals. Users experiencing difficulty reaching distant colleagues should seek higher ground as their first troubleshooting step.
For mobile installations, mounting antennas as high as possible on the vehicle improves performance. A magnetic mount antenna placed on the center of a vehicle roof outperforms the same antenna mounted on a trunk or rear bumper. The additional height and clearer radiation pattern justify the slightly less convenient placement.
Organizations with fixed facilities should consider placing base station radios at the highest practical point in their buildings. A radio in a third-floor office will outperform the identical unit in a basement location, even when both use external antennas.
Improve Line of Sight
Line of sight determines whether radios can communicate at all, regardless of power levels. Identifying and eliminating obstructions between radios improves range without any equipment changes.
Understanding your terrain helps predict communication challenges. Hills, buildings, and other large obstacles create radio shadows where signals cannot reach. Users on opposite sides of a hill may be unable to communicate even if they are relatively close, while the same radios separated by much greater distance across flat terrain work perfectly.
When communication fails, physically repositioning even short distances can make the difference. Moving from behind a building to an open area, walking around a corner, or stepping away from metal structures often restores connectivity. Users should develop awareness of their environment and recognize locations where communication is difficult.
For persistent dead zones, creative solutions can restore coverage. If a building blocks communication between two areas, placing a radio relay operator in a position visible to both locations allows messages to be passed. This human repeater approach costs nothing but coordinates multiple users effectively.
Window positioning matters for indoor users. Radio signals penetrate windows far more easily than walls, especially modern walls with metal studs or foil-backed insulation. When calling from inside a building, standing near a window facing the direction of the distant radio significantly improves both transmission and reception.
Minimize Building Interference
Modern construction materials are increasingly hostile to radio waves. While you cannot change building materials, you can minimize their impact on communication.
Steel-reinforced concrete, metal siding, and metalized window films all block radio signals effectively. Avoiding areas with the heaviest concentration of these materials improves range. Ground floors with thick concrete slabs overhead and metal rebar present more challenges than upper floors with lighter construction above.
Interior rooms deep within buildings, surrounded by multiple walls, experience greater signal attenuation than perimeter rooms with windows. When possible, conduct radio communications from locations near building exteriors.
Stairwells and elevator shafts, being essentially metal and concrete enclosures, are notorious dead zones. Users should step out of these areas when initiating or receiving important communications.
Metal shelving, equipment racks, and machinery create localized interference. Standing next to large metal objects or within metal framework reduces effective range. Moving a few feet away from such obstacles often restores signal strength.

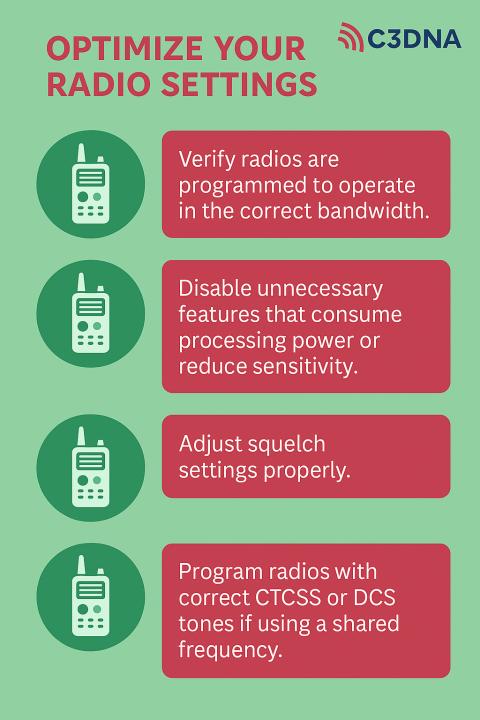

Optimize Radio Settings and Programming
Proper radio configuration ensures equipment operates at peak efficiency without hardware changes.
Verify radios are programmed to operate in the correct bandwidth. Many modern radios can operate in either narrowband (12.5 kHz) or wideband (25 kHz) modes. While narrowband is required in many frequency bands to comply with regulations, wideband provides better audio quality and slightly better range when permitted. Ensure all radios in your fleet use the same bandwidth to maximize compatibility and performance.
Disable unnecessary features that consume processing power or reduce sensitivity. Some radios include voice scrambling, recording features, or other options that slightly degrade performance. If these features are not needed, disabling them optimizes basic communication capability.
Adjust squelch settings properly. Squelch controls determine how strong a signal must be before the radio produces audio. Setting squelch too high causes the radio to ignore weak but intelligible signals. Squelch should be set to the lowest level that eliminates background noise when no one is transmitting. This ensures maximum sensitivity to distant or weak signals.
Program radios with correct CTCSS or DCS tones if using a shared frequency. Incorrect tone programming can prevent radios from hearing each other even when signals are strong. Verify all radios use identical tones and that tone settings match system requirements.
Use Proper Operating Technique
How users operate their radios affects communication success as much as equipment quality.
Hold the radio correctly. Position it 2 to 3 inches from your mouth at shoulder height with the antenna vertical. Speaking directly into the microphone from too close causes distortion, while holding the radio too far away results in weak audio. The angle matters as well because tilting the radio horizontal reduces antenna efficiency.
Pause before speaking. After pressing the push-to-talk button, wait a half-second before beginning your message. This delay allows the transmitter to reach full power and any repeaters in the system to activate. Users who speak immediately often have the first word or two cut off, requiring them to repeat transmissions.
Speak clearly and at moderate volume. Shouting into the radio does not increase transmission distance and often causes audio distortion. Speaking too softly makes you difficult to understand, especially under marginal signal conditions. A normal, clear speaking voice at moderate volume provides the best audio quality.
Keep transmissions brief. Long transmissions drain batteries faster, reducing available power for subsequent calls. Organize thoughts before transmitting to keep messages concise and clear. This also improves system efficiency when multiple users share a channel.
Release the push-to-talk button completely after speaking. Partially depressed buttons can leave transmitters active, draining batteries and blocking the channel for other users.
Maintain Equipment Condition
Regular maintenance ensures radios perform at their design capabilities.
Keep radios and batteries clean. Dirt and corrosion on battery contacts reduce power transfer efficiency, limiting available transmit power. Wipe contacts regularly with a dry cloth or use specialized electronics cleaning products for stubborn corrosion.
Ensure batteries are fully charged. Battery voltage directly affects transmit power. A radio operating on a half-charged battery transmits at significantly reduced power, cutting range substantially. Establish charging routines that guarantee radios start each shift with full batteries.
Replace aging batteries promptly. Rechargeable batteries degrade over time, typically retaining only 60-70% of original capacity after 500 charge cycles or 18 to 24 months of service. Even when fully charged, old batteries provide less voltage and shorter runtime. Budget for regular battery replacement to maintain optimal performance.
Store radios properly when not in use. Extreme temperatures, especially heat, damage both radios and batteries. Storing radios in hot vehicles or direct sunlight degrades components and reduces battery life. Cool, dry storage extends equipment lifespan and maintains performance.
Inspect radios regularly for physical damage. Cracked cases can allow moisture intrusion that corrodes internal components. Loose screws or fittings may indicate mounting problems or wear that affects operation. Addressing minor damage promptly prevents it from becoming major failures.
Reduce Interference Sources
Radio frequency interference masks weak signals, reducing effective range even when those signals would otherwise be detectable.
Identify and minimize electrical noise sources. Fluorescent lights, motors, computers, and other electronic devices generate interference. When experiencing communication difficulties in a particular location, turn off nearby electrical equipment to determine if it is causing problems. Relocating radios away from known interference sources improves reception of distant signals.
Choose operating frequencies carefully. If you have access to multiple frequencies or channels, test them to identify which provides the clearest communication. Some frequencies experience more interference than others depending on local conditions and other radio users in the area.
Use CTCSS or DCS tones to filter unwanted signals. These sub-audible tones allow your radio to ignore transmissions from other users on the same frequency, reducing noise and confusion. While tones do not extend range directly, they improve usable communication by filtering out distracting interference.
Strategic Positioning and Timing
Environmental conditions and positioning strategies can substantially affect range.
Take advantage of atmospheric conditions. Early morning and late evening often provide better radio propagation than midday, particularly for VHF frequencies. While this effect is subtle for typical two-way radio distances, users experiencing marginal communication may notice improved performance during these periods.
Position relay users strategically. If direct communication between two points fails, a third radio positioned between them can relay messages. This relay operator requires a location with line of sight to both other parties. While not automatic like a repeater, this human relay technique extends effective range using existing equipment.
Coordinate movement to maintain communication. If users recognize they are approaching the edge of radio range, they can deliberately adjust their routes or positions to maintain contact. A delivery driver might take a slightly longer route that keeps them in range rather than a shorter path through a dead zone.
Use External Accessories
Several accessories improve range without increasing radio power.
External speaker microphones improve both audio transmission and reception. These accessories position the microphone closer to your mouth for clearer transmission and provide larger speakers for better reception. Remote speaker microphones also allow users to operate radios while carrying them in pouches or on belts, positioning the radio body optimally while maintaining convenient access.
Earpiece and microphone combinations serve similar purposes, with the added benefit of reducing background noise. In noisy environments, earpieces allow users to hear weak signals that would be inaudible through the radio’s built-in speaker.
External antennas for mobile radios should use quality coaxial cable. Cable quality dramatically affects signal loss between the radio and antenna. Low-quality cable can lose 50% or more of transmitted power before it reaches the antenna. Using proper cable types with correct connectors ensures maximum power transfer.
Conclusion
Improving two-way radio range requires understanding the multiple factors that affect communication and systematically optimizing each element. Antenna selection and maintenance, elevation, line of sight, proper settings, operating technique, equipment condition, and interference reduction all contribute to effective range. Many users discover that simple, low-cost improvements like replacing worn antennas, maintaining full battery charges, and using proper technique can double their effective communication distance. Before investing in higher-power radios or repeater systems, organizations should implement these fundamental optimization strategies.
The result is often improved performance that meets operational needs without the expense and complexity of power increases or infrastructure additions. When these techniques still leave range gaps, only then should more expensive solutions be considered, and even then, implementing these fundamentals ensures new equipment performs at its full potential.
